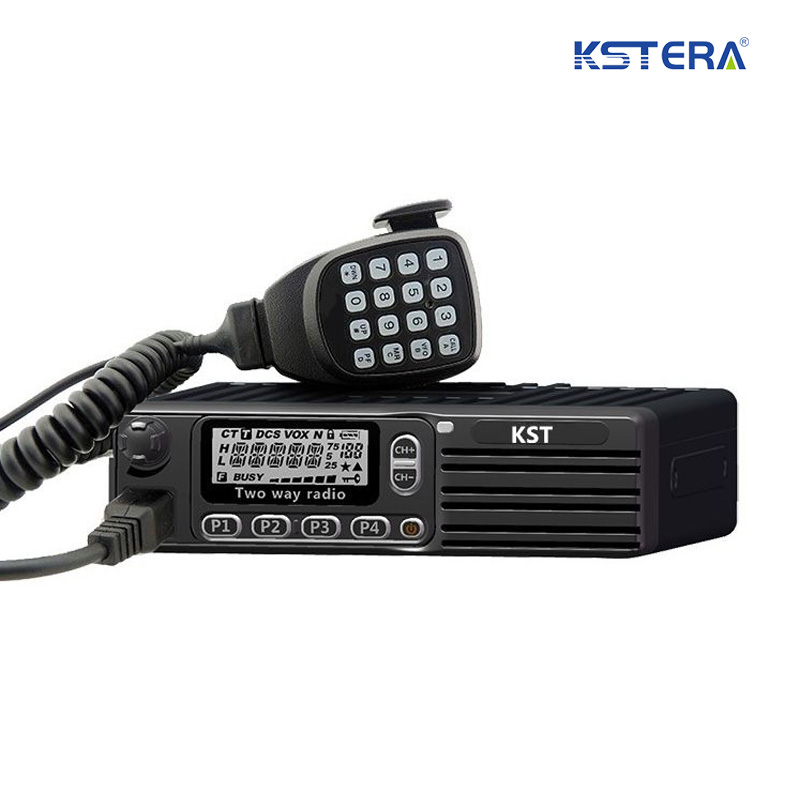

MOTOTRBO DMR DIGITAL Analog KST DM-M8000 Vehicle Mouted Base Radio

KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.

  • PRODUCT DETAILS

Product Features:

1. Use Time-Division Multiple-Access (TDMA) digital technology which doubles the number of users on a single licensed 12.5kHz channel. Comply with the DMR digital protocol.
2. Operate in both Digital & Analogue mode, allows easily migrate from analog to digital.
3. Provides clearer voice communications in digital mode, throughout the coverage area.
4. Private call, group call and all call in digital mode.
5. Text messaging in digital mode.
6. Integrates voice and data to increase operational efficiency.
7. Enhanced call management features include emergency, call alert, radio check, radio enable/disable.
8. Transmit admit criteria.
9. Build in CTCSS/DCS signaling in Analog mode.
10. Accessory connector incorporates USB and enhanced audio capability.
11. Tri-color LED Indicator for tx/rx status, calling, scanning.
12. Up to 1000 contacts in Digital mode.
13. Dual priority channel scan operates in both analogue/digital mode.
14. VOX (Optional)
15. GPS (Optional)
16. Vibration reminds when receiving text messages and voice call (Optional).
17. Firmware can be updated easily to add new features.
18. Up to 40% longer battery duration.
19. IP65 Water Resistance & Dust Protector


Technical Specifications:

General Specification
Model No. DM-8800
Frequency Range UHF 350MHZ
Operated Voltage DC7.4-8.4V
Battery Capacity 3000mAh
Storage Channel 256CH
Dimension 11.2*6*3.3cm(Radio without antenna)
Weight 340g
Transmitter
Channel Spacing 12.5KHz/25KHz/6.25KHz(DPMR)
Frequency Stability(-20℃, +60℃, +25℃) ±1.5ppm
Output Power L: 1W  H: 6W
Modulation  Limited ±2.5KHz @ 12.5KHz
±5.0KHz@ 25KHz
FM hum and noise  -40dB @ 12.5KHz
 -45dB @ 12.5KHz
Conducted/radiated emission  -36dBm < 1GHz
 -30dBm < 1GHz & <4GHz
Adjacent Channel Power  -60dB @ 12.5KHz
 -65dB @ 12.5KHz
Audio Response  +1, -3dbB
Adudio Distortion 3%
FM Modulation 12.5KHz: 11KΦF3E
25KHz: 16KΦF3E
4FSK Digital Modulation 12.5KHz only data: 7K60FXD
12.5KHz data and audio:7K60FXE
Digital Vocoder Type AMBE(optional)
Digital Agreenment DMR
Receiver
Channel Spacing 12.5KHz/25KHz/6.25KHz(DPMR)
Frequency Stability(-20℃, +60℃, +25℃) ±1.5ppm
Analog Sensibility 0.25μV(12dB SINAD)
0.3μV(20dB SINAD)
Digital Sensibility 5% BER: 0.3μV
Intermodulation 65 dB
Adjacent Channel Selectivity 60 dB @ 12.5KHz
60 dB @ 25KHz
Spurious Rejection 65dB
Rated Audio 1.2W
Audio Distortion @ Rated Audio 0.03
FM hum and noise -40dB @ 12.5KHz
-45dB @ 25KHz
Adudio Response +1, -3dbB
Spurious Emiossion -57 dBm



KST is a professional DMR Two way radio manufacturer more than 10 Years, We are seeking distributor globally!
