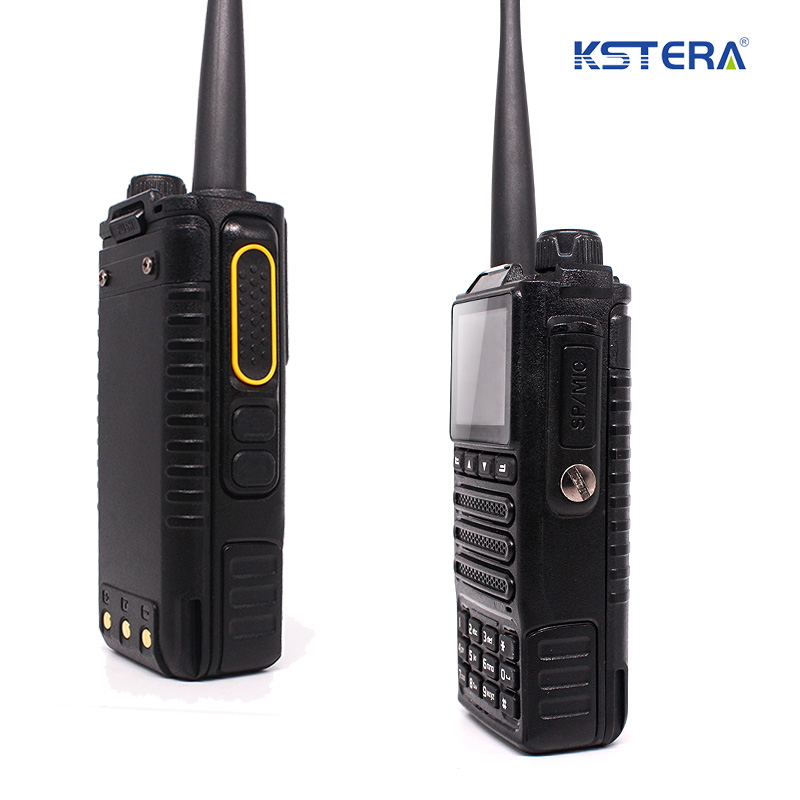

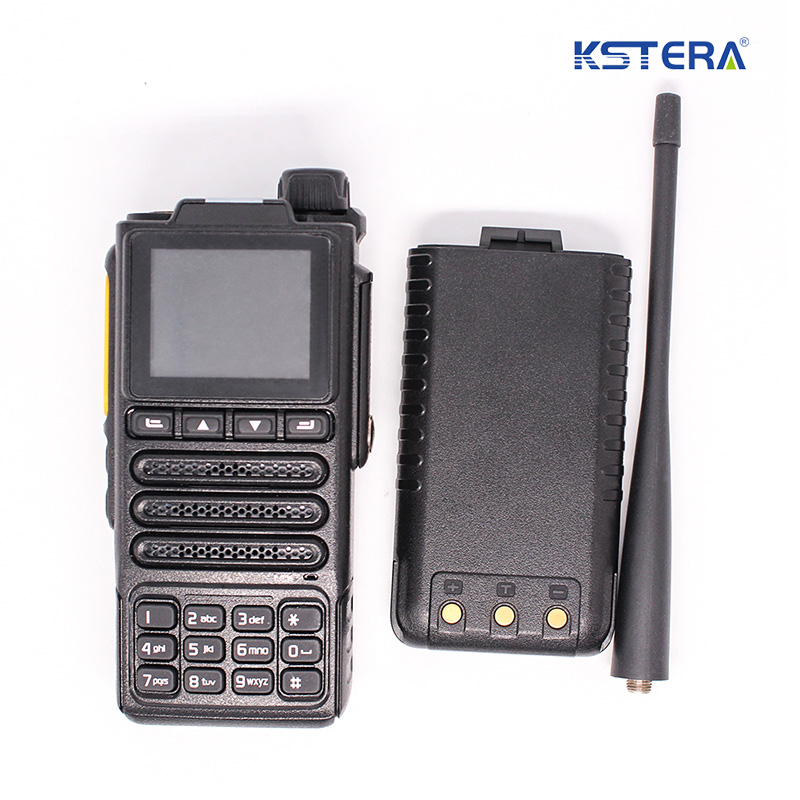

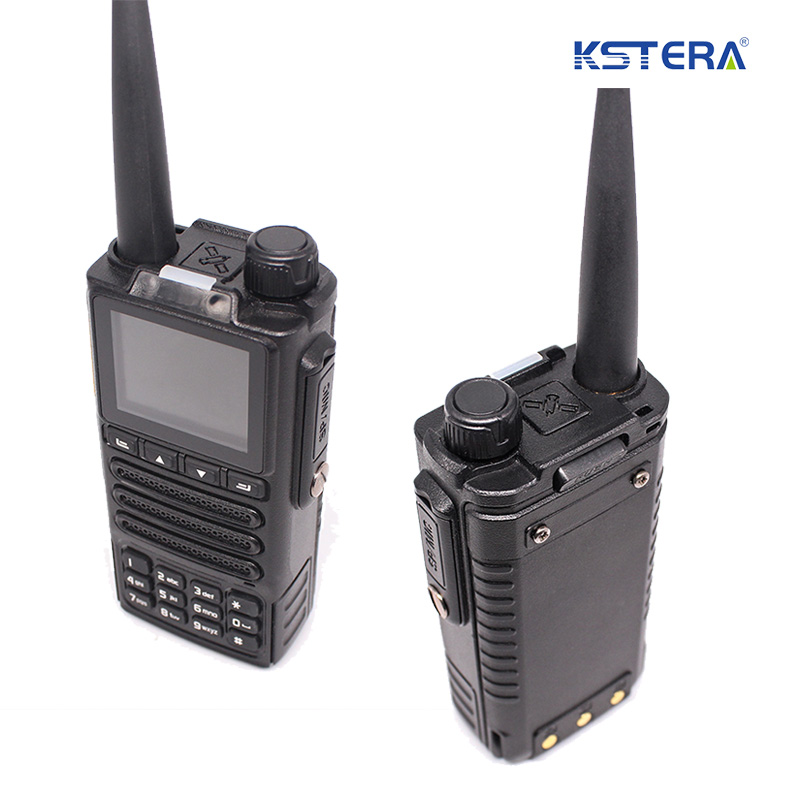

KST DM-8800 Dual band DMR Tri-band 350MHz GPS Digital DMR Walkie talkie compatiable with MOTOTRBO RADIO
KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.
- PRODUCT DETAILS
Product Features：
1. Use Time-Division Multiple-Access (TDMA) digital technology which doubles the number of users on a single licensed 12.5kHz channel. Comply with the DMR digital protocol.
2. Operate in both Digital & Analogue mode, allows easily migrate from analog to digital.
3. Provides clearer voice communications in digital mode, throughout the coverage area.
4. Private call, group call and all call in digital mode.
5. Text messaging in digital mode.
6. Integrates voice and data to increase operational efficiency.
7. Enhanced call management features include emergency, call alert, radio check, radio enable/disable.
8. Transmit admit criteria.
9. Build in CTCSS/DCS signaling in Analog mode.

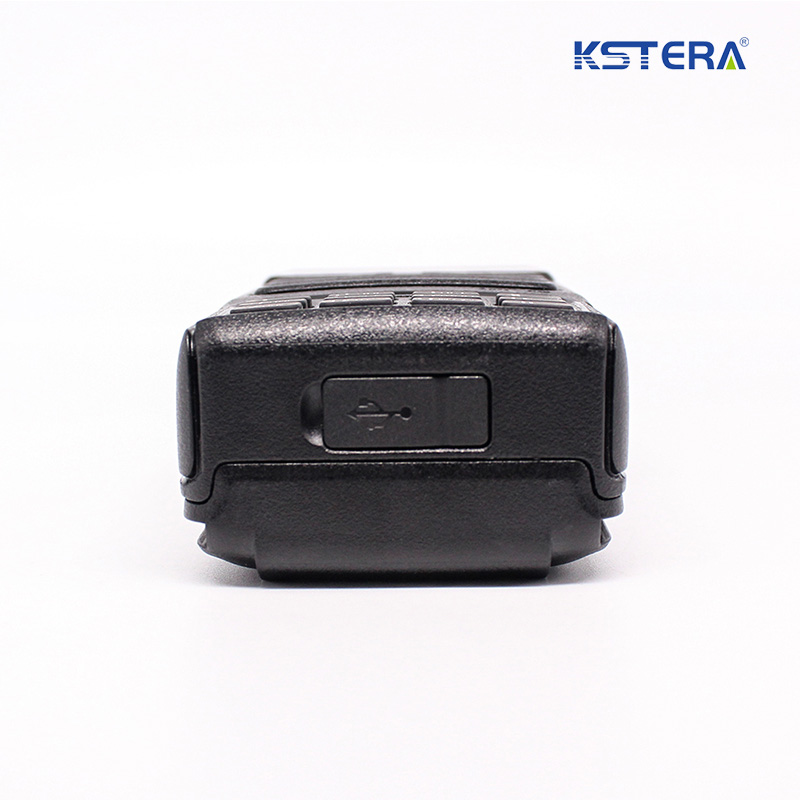

10. Accessory connector incorporates USB and enhanced audio capability.
11. Tri-color LED Indicator for tx/rx status, calling, scanning.
12. Up to 1000 contacts in Digital mode.
13. Dual priority channel scan operates in both analogue/digital mode.
14. VOX (Optional)
15. GPS (Optional)
16. Vibration reminds when receiving text messages and voice call (Optional).
17. Firmware can be updated easily to add new features.
18. Up to 40% longer battery duration.
19. IP65 Water Resistance & Dust Protector
Technical Specifications：
| General Specification | |
| Model No. | DM-8800 |
| Frequency Range | UHF 350MHZ |
| Operated Voltage | DC7.4-8.4V |
| Battery Capacity | 3000mAh |
| Storage Channel | 256CH |
| Dimension | 11.2*6*3.3cm(Radio without antenna) |
| Weight | 340g |
| Transmitter | |
| Channel Spacing | 12.5KHz/25KHz/6.25KHz(DPMR) |
| Frequency Stability(-20℃, +60℃, +25℃) | ±1.5ppm |
| Output Power | L: 1W H: 6W |
| Modulation Limited | ±2.5KHz @ 12.5KHz |
| ±5.0KHz@ 25KHz | |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 12.5KHz | |
| Conducted/radiated emission | -36dBm ＜ 1GHz |
| -30dBm ＜ 1GHz & ＜4GHz | |
| Adjacent Channel Power | -60dB @ 12.5KHz |
| -65dB @ 12.5KHz | |
| Audio Response | +1, -3dbB |
| Adudio Distortion | 3% |
| FM Modulation | 12.5KHz: 11KΦF3E |
| 25KHz: 16KΦF3E | |
| 4FSK Digital Modulation | 12.5KHz only data: 7K60FXD |
| 12.5KHz data and audio:7K60FXE | |
| Digital Vocoder Type | AMBE(optional) |
| Digital Agreenment | DMR |
| Receiver | |
| Channel Spacing | 12.5KHz/25KHz/6.25KHz(DPMR) |
| Frequency Stability(-20℃, +60℃, +25℃) | ±1.5ppm |
| Analog Sensibility | 0.25μV(12dB SINAD) |
| 0.3μV(20dB SINAD) | |
| Digital Sensibility | 5% BER: 0.3μV |
| Intermodulation | 65 dB |
| Adjacent Channel Selectivity | 60 dB @ 12.5KHz |
| 60 dB @ 25KHz | |
| Spurious Rejection | 65dB |
| Rated Audio | 1.2W |
| Audio Distortion @ Rated Audio | 0.03 |
| FM hum and noise | -40dB @ 12.5KHz |
| -45dB @ 25KHz | |
| Adudio Response | +1, -3dbB |
| Spurious Emiossion | -57 dBm |
KST is a professional DMR Two way radio manufacturer more than 10 Years, We are seeking distributor globally!
Products Show：
