KST DM-8000 DMR Digital Two Way Radio Compatible with motorola DMR Radio
KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.
- PRODUCT DETAILS

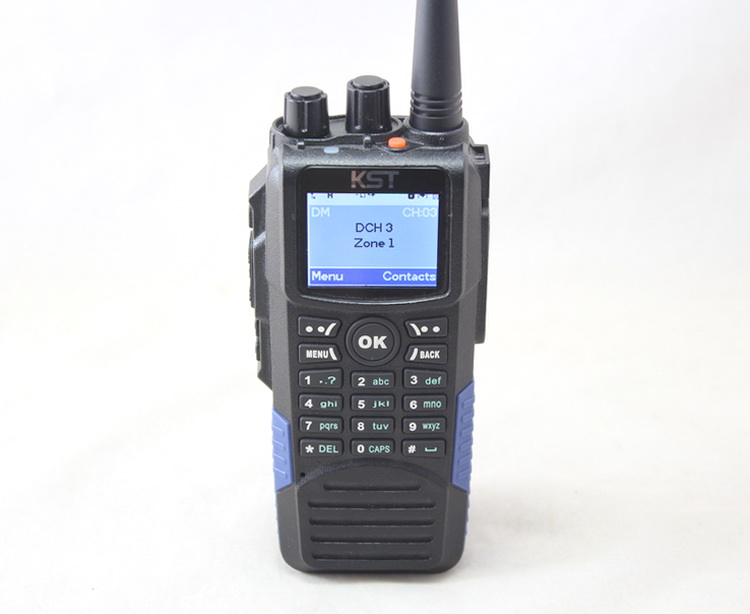

KST DM-8000 DMR Digital Two Way Radio Compatible with motorola DMR Radio
- Compatible with MOTOROLA digital
- TDMA Digital technology
- Private call, Group call and All call
- Text messages
- Integrated GPS module (Optional)
- Duplex Communication function
Detailed Specification:
|
General |
|
|
Model |
DM-8000 |
|
Frequency range |
400~470MHz, 136~174MHz |
|
Channel Capacity |
512 |
|
Normal Operating Voltage |
7.2V |
|
Operating Temperature |
-30°C~+60°C |
|
Store Temperature |
-40°C~+85°C |
|
Weight |
270g |
|
Dimensions:H x W x D(mm) |
113.5 x 54 x 33.5 |
|
Battery Life in 5/5/90 Operating Mode5/5/90 |
|
|
2300mAh Standard Li-ion battery |
Analogue:15 houses Digital: 20hours |
|
Transmitter |
|
|
Frequency |
400~470MHz,136~174MHz |
|
Channel Spacing |
12.5KHz |
|
Frequency Stability |
+/- 1.0ppm |
|
Power Output |
L:1W, H:4W |
|
Hum and Noise |
-40dB @ 12.5KHz |
|
Conducted, radiated spurious emission |
-36dBm @ <1GHz, -30dBm @ >1GHz |
|
Adjacent Channel Power |
-60dB @ 12.5KHz |
|
FM |
12.5KHz:11K0F3E |
|
4FSK Digital Mode 4FSK |
12.5KHz(data only):7K60FXD 12.5KHz(data+voice):7K60FXE |
|
Modulation Maximum Deviation |
2.5KHz @ 12.5KHz |
|
Nonactive Slot Power |
-57dBm |
|
Audio Response |
+1dB ~ -3dB |
|
Audio Distortion |
≤ 3% |
|
Digital Protocol |
ETSI TS 102 361-1, -2, -3 |
|
Vocoder Type |
AMBE+2™ |
|
Receiver
|
|
|
Frequency Range |
400~470MHz, 136~174MHz |
|
Channel Spacing |
12.5KHz |
|
Frequency Stability |
+/- 1.0ppm |
|
Analog Sensitivity |
0.35uV/-116dBm(20 dB SINAD) 0.22uV/-120dBm(Typical) |
|
Digital Sensitivity |
0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) |
|
Intermodulation |
TIA603C:70dB ETSI:65dB |
|
Adjacent Channel Selectivity |
TIA603C:65dB @ 12.5KHz ETSI: 60dB @ 12.5KHz |
|
Co-Channel rejection |
12dB@ 12.5KHz |
|
Spurious Response rejection |
TIA603C:75dB ETSI:70dB |
|
Conducted spurious emission |
-57dBm@ < 1GHz,-47dBm @ > 1GHz |
|
Blocking |
84dB |
|
Rated Audio Power |
1W |
|
Audio Response |
+1dB ~ -3dB |
|
Rated Audio Distortion |
≤ 3% |
|
GPS Optional |
|
|
Sensitivity |
≤ -130DB |
|
Cold Start |
≤ 1 minute |
|
Hot Start |
≤ 10 seconds |
|
Horizontal Accuracy |
≤ 10 meters |
vhf uhf fm transceiver, Two-Way Radio, Walkie Talkie, Handheld Transceiver, 2 way radio, Interphone
Main function/ Features:
1. Use Time-Division Multiple-Access (TDMA) digital technology which doubles the number of users
2. on a single licensed 12.5KHz channel. Comply with the DMR digital protocol.
3. Operate in both Digital & Analogue mode,allows easily migrate from analog to digital
4. Provides clearer voice communications in digital mode,throughout the coverage area
5. Private call,group call and all call in digital mode
6. Text message in digital mode
7. Integrates voice and data to increase operational efficiency
8. Enhanced call management features include emergency,call alart, radio check,radio enable/disable
9. Transmit admit criteria
10. Build in CTCSS/DCS signaling in Analog mode
11. Up to 1000 contacts in Digital mode
12. Dual priority channel scan operates in both analogue/digital mode
13. VOX(Optional)
14. GPS(Optional)
15.Vibration reminds when receiving text messages and voice call(Optional
16. Up to 40% longer battery duration
17. IP65 water Resistance & Dust Protector
Standard Accessories in the package
Radio+ Battery+ Antenna+ Belt Clip+ Operation Manual+ Battery Changer+ Adapter
Applications
- Service industry(Hotel, Restaurant, Supermarket, etc);
- Security, Property Management;
- Police, Firefighters, Education, Public Utilities;
- Constrution Sites & Transportation;
- Warehouse, Ports & Logistic Industry;
- Manufacturing industry
Two way radio with compact and user-fricndly design
Standard Accessories in the package
Radio+ Battery+ Antenna+ Belt Clip+ Operation Manual+ Battery Changer+ Adapter
