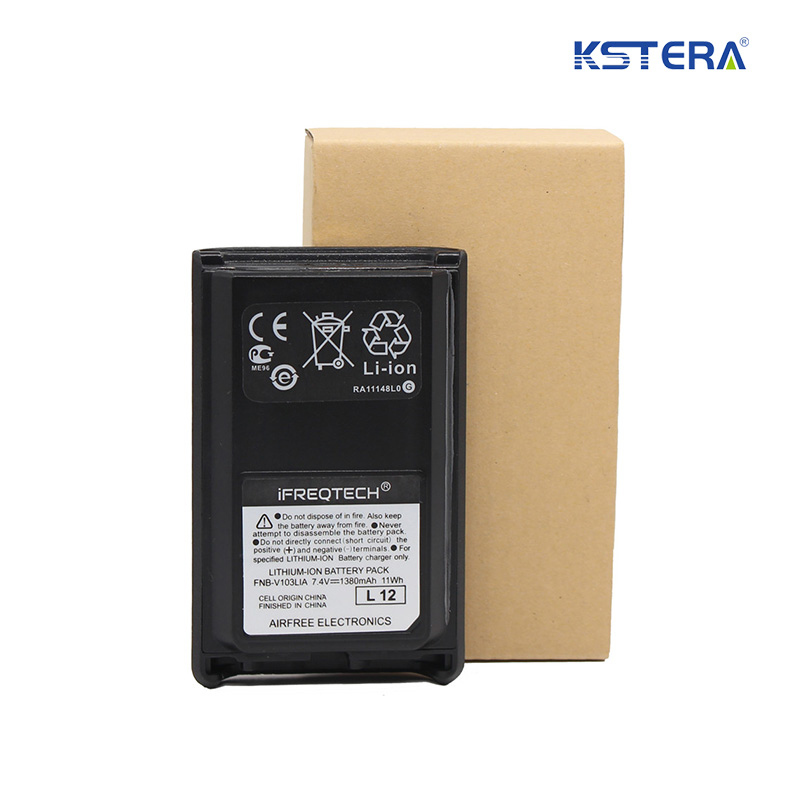

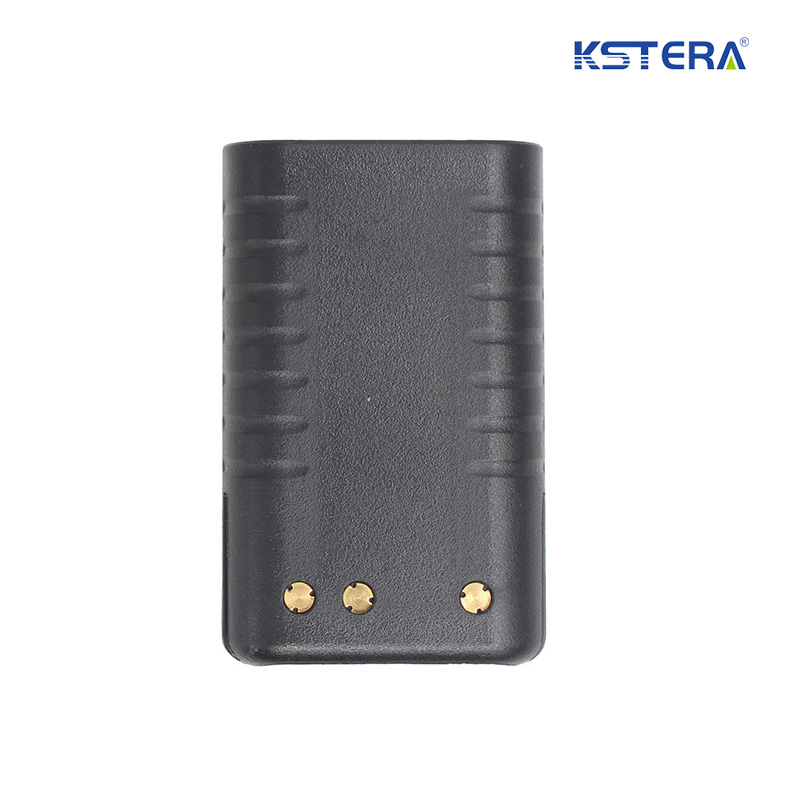

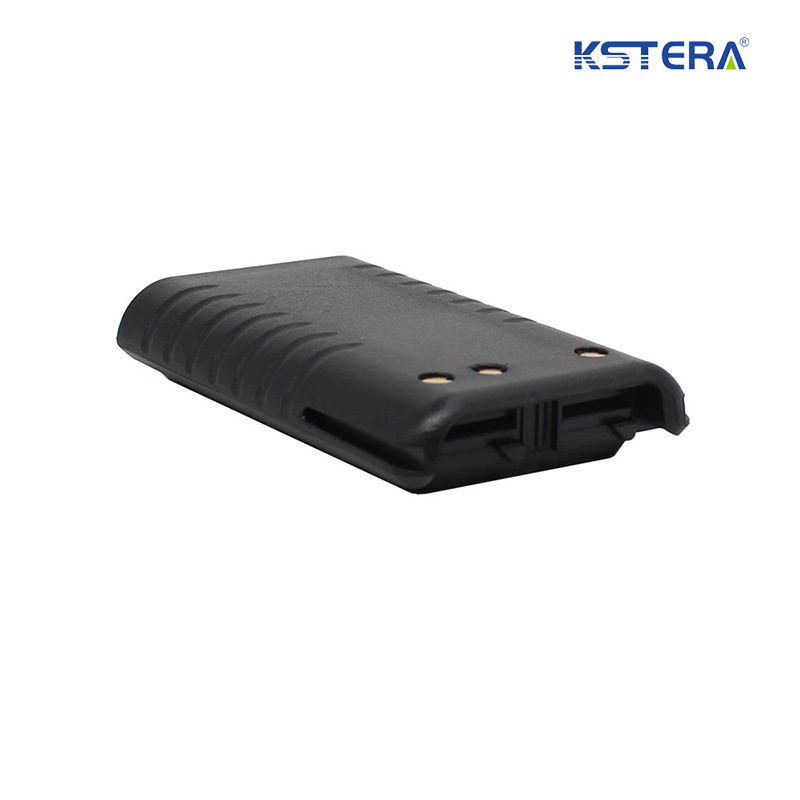

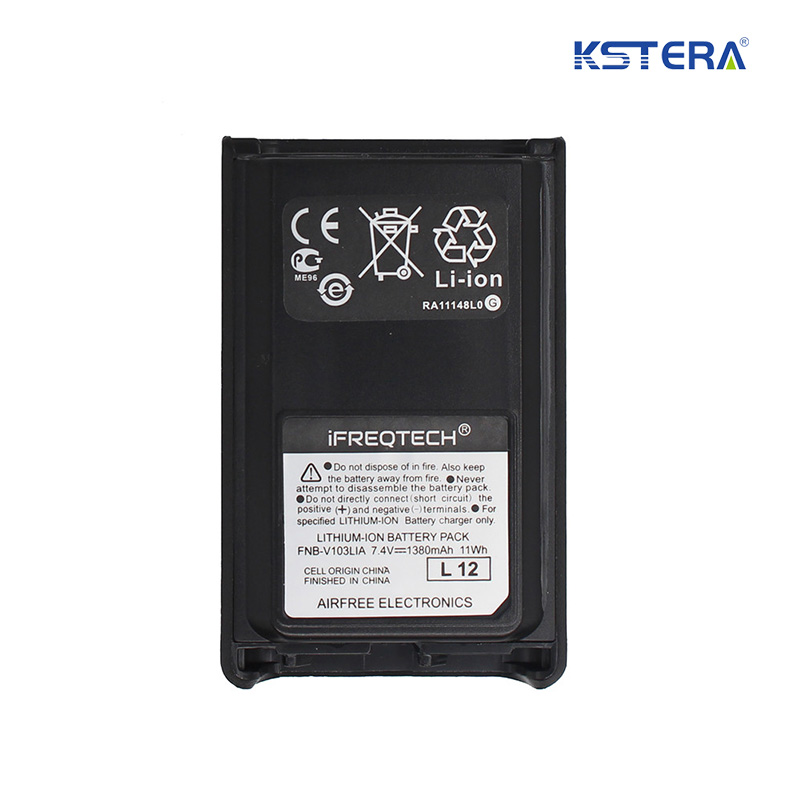

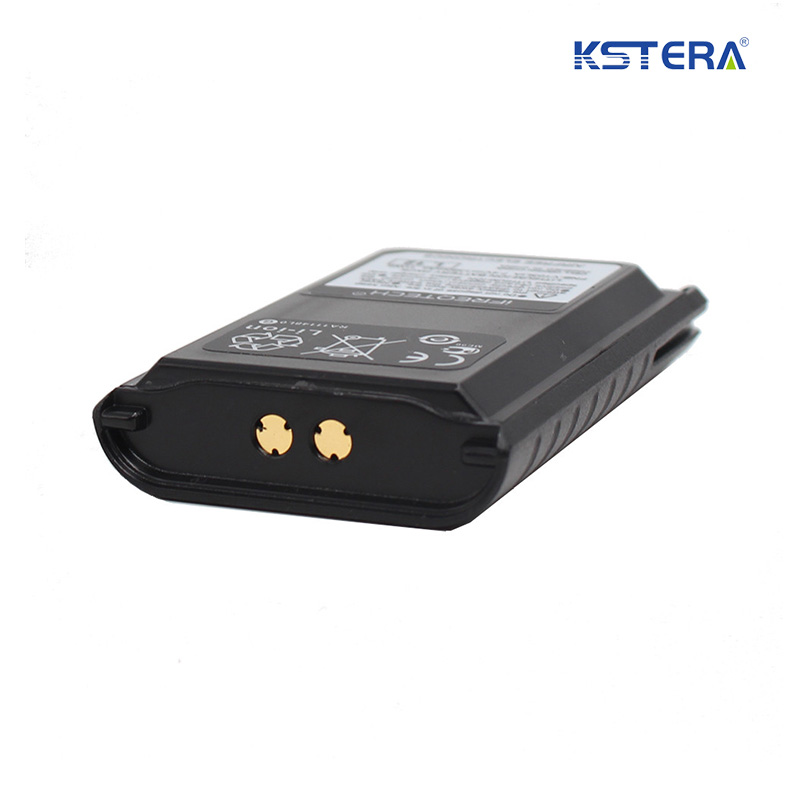

FNBV103LI, Battery for Vertex Standard,VX-231,VX230 (1380mAh,lith) fnb-v103li
KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.
- PRODUCT DETAILS
Product Features：
VX-160 Accessories
- MH-45B4B: Noise cancelling speaker microphone
- MH-450S: Speaker microphone
- MH-360S: Compact speaker microphonev
- MH-37A4B: Earpiece microphone
- VH-110S: Over-the-head headset
- VH-120S: 3-Wire earpiece mic w/palm PTT switch
- VH-130S: 2-Wire earpiece w/palm mic and PTT switch
- VH-115S: Behind-the-head headset w/boom mic
- VH-215S: Over-the-head single-muff headset
- VC-25: Over-the-head VOX headset
- FNB-V67LI: 2000 mAh Li-Ion battery
- FNB-V94: 1800 mAh Ni-MH battery
- FNB-83: 1400 mAh Ni-MH battery
- FNB-57: 1100 mAh Ni-Cd battery
- VAC-6810: 6-Unit multi rapid charger (FNB-67LI)
- VAC-6010: 6-Unit charger (FNB-83, FNB-V94)
- VAC-810: Desktop rapid charger (FNB-67LI)
- VAC-10: Desktop charger (FNB-83, FNB-V94)
- DCM-1: Desktop charger mounting adapter
- VCM-3: Vehicle mounting adapter for VAC-10
- VCM-1: Vehicle mounting adpater for VAC-800/810
- FBA-25A: Alkaline battery case (holds 6 AA batteries)
- LCC-160: Leather case
- LCC-160S: Leather case w/swivel belt clip
- Clip-17C: Swivel belt clip
Replace OEM P/N:
YAESU / Vertex Standard FNB-V57, FNB-V57H, FNB-64, FNB-64H, FNB-83, FNB-83H
STANDARD HORIZON FNB-83
YAESU / Vertex Standard FNB-V57, FNB-V57H, FNB-64, FNB-64H, FNB-83, FNB-83H
STANDARD HORIZON FNB-83
Compatible Models:
Portable Radios
VX-110, VX-120, VX-127, VX-150, VX-160, VX-170, VX-177, VX-180, VX-210, VX-210A, VX-400, VX-410, VX-414, VX-417, VX-420, VX-424, VX-427, VX-800, VX-800V, VX-800U, FT-60E, FT-60R, FT-250E, FT-250R, FT-270E, FT-270R, FT-277R
Aviation Radios
VXA-120 Pro II, VXA-150 Pro V, VXA-200 Aviator Pilot II, VXA-210 Aviator Pilot, VXA-210 Lite, VXA-220 Pro VI, VXA-300 Pilot III, VXA-300 Lite
Portable Radios
VX-110, VX-120, VX-127, VX-150, VX-160, VX-170, VX-177, VX-180, VX-210, VX-210A, VX-400, VX-410, VX-414, VX-417, VX-420, VX-424, VX-427, VX-800, VX-800V, VX-800U, FT-60E, FT-60R, FT-250E, FT-250R, FT-270E, FT-270R, FT-277R
Aviation Radios
VXA-120 Pro II, VXA-150 Pro V, VXA-200 Aviator Pilot II, VXA-210 Aviator Pilot, VXA-210 Lite, VXA-220 Pro VI, VXA-300 Pilot III, VXA-300 Lite
Technical Specifications：
| General Specifications | |
| Original Model No. | FNBV103LI |
| Compatible Radio Models | VX-110, VX-120, VX-127, VX-150, VX-160, VX-170, VX-177, VX-180, VX-210, VX-210A, VX-400, VX-410, VX-414, VX-417, VX-420, VX-424, VX-427, VX-800, VX-800V, VX-800U, FT-60E, FT-60R, FT-250E, FT-250R, FT-270E, FT-270R, FT-277R, etc |
| Place Of Original | China |
| Voltage/Type | 7.4V LI-ION |
| Capacity | 1380mAh |
| Dimensions (mm) | 105(W)*51(D)*17(H) |
| Compatible Charger Models | Charger |
| Mechanical | |
| Cells used | Chinese cell or Japanese cell |
| Plastic material | PC+ABS+fireproofing material |
| Assembly construction | Housings bonded by ultrasonic |
| Charger&radio contacts | Gold-plate |
| Environmental | |
| Charging temperature | +0°C to +45°C |
| Discharging temperature | -20°C to +60°C |
| Storage temperature | +25°C + –5°C |
| Storage position | non-critical |
| Package | |
| Inner packing | Polyethylene tape packaged batteries in white separate boxes |
| Outer packing | Put white separate boxes into 34*34*34cm carton, 100PCS each carton |
KST is a professional Two way radio Accessory (Battery/Charger/Antenna/ Microphone/Earpiece/ Spare parts) manufacturer more than 10 Years, We are seeking distributor globally!
Products Show：
