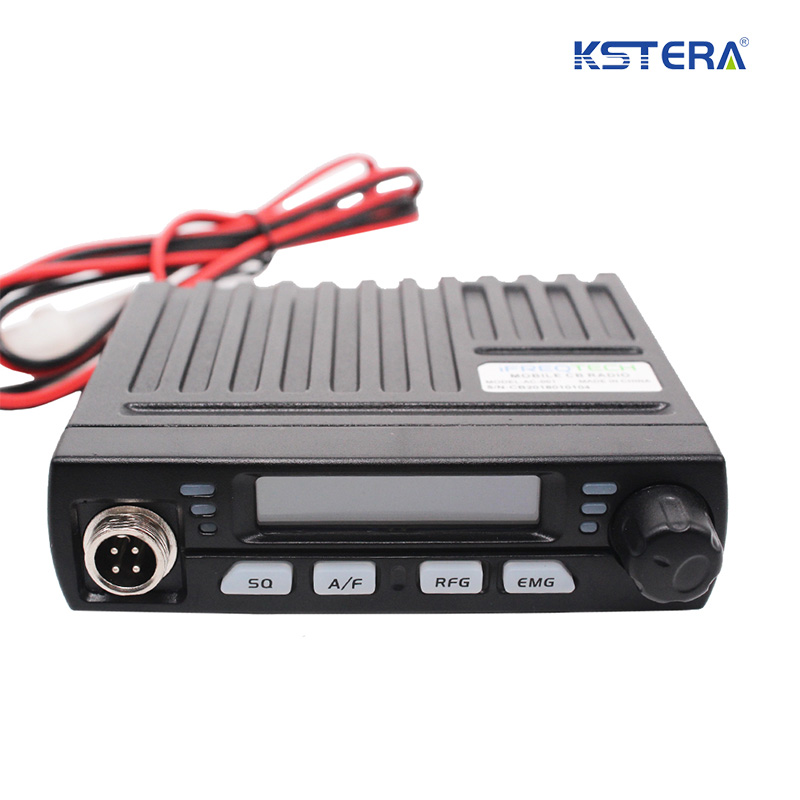

Truck Radio Station AC-001-02.jpg

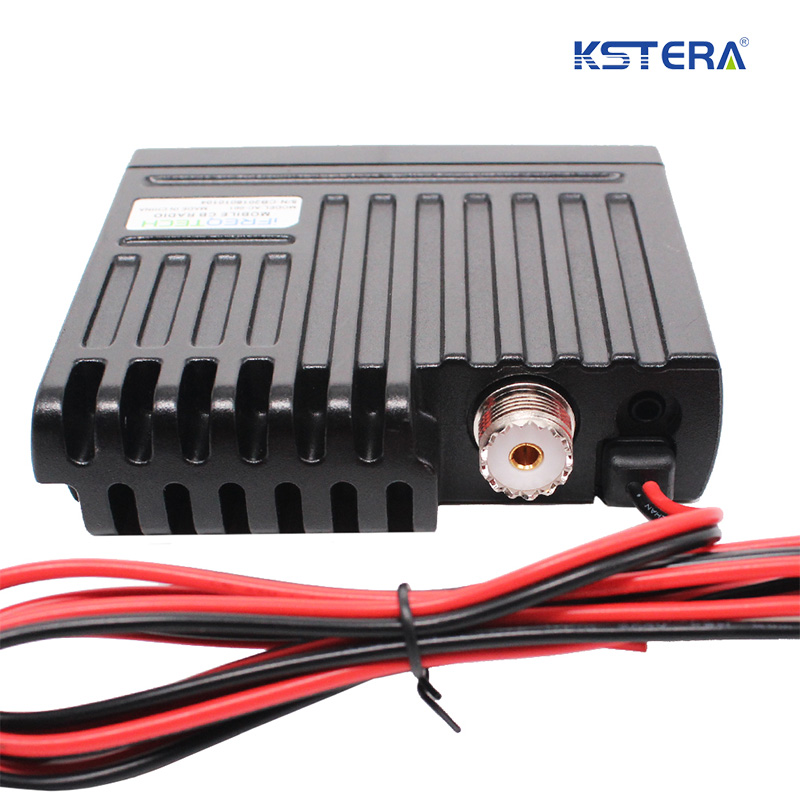

Truck Radio Station AC-001-03.jpg

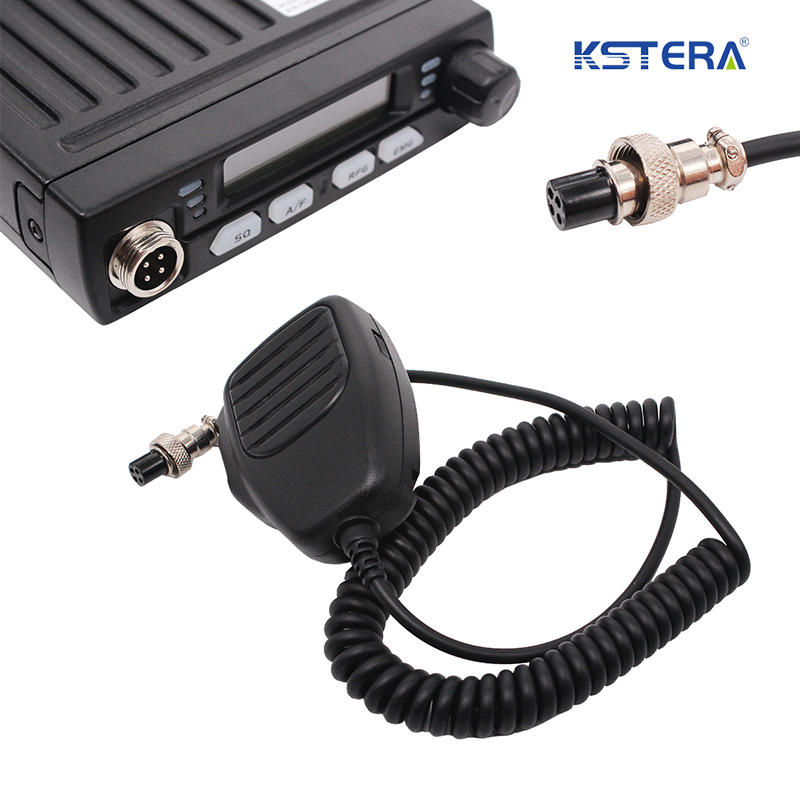

Truck Radio Station AC-001-04.jpg

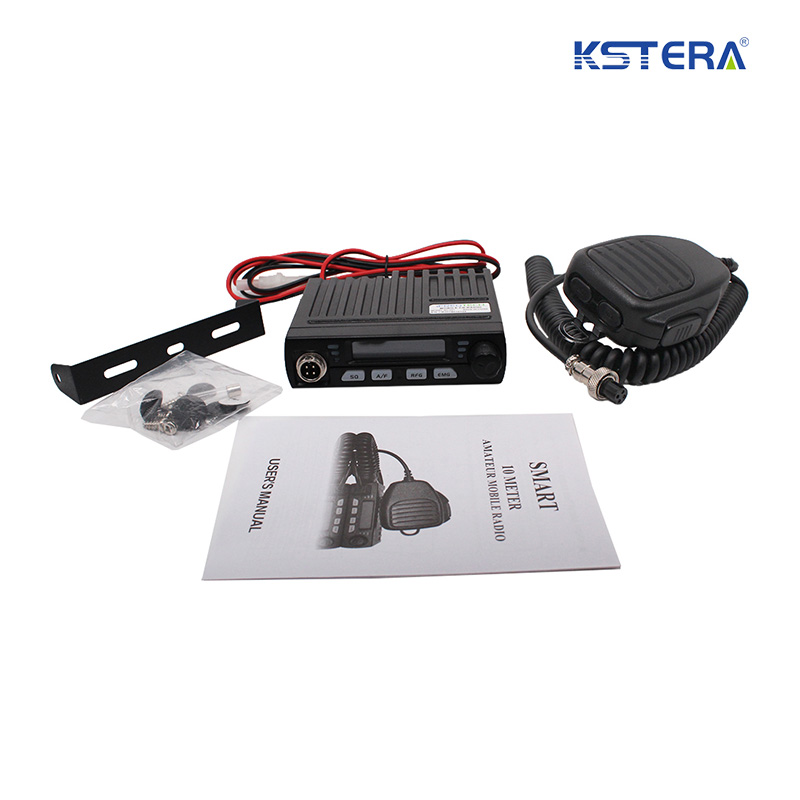

Truck Radio Station AC-001-05.jpg

AC-001 Ultra Compact AM/FM Mini Mobie 8W CB Radio 26MHz 27MHz 10 Meter Amateur Mobile Radio Albrecht AE-6110 Citizen Band Radio

KST ELECTRONICS CO.,LIMITED (KST) has been a supplier experienced in sale and service of electronic products, especially Professional Two-Way Radio and Radio Accessories (Battery, Charger) Communication Equipment for more than 10 years.

  • PRODUCT DETAILS

Product Features:

undefined undefined


Technical Specifications:

General
Modulation Mode AM/FM

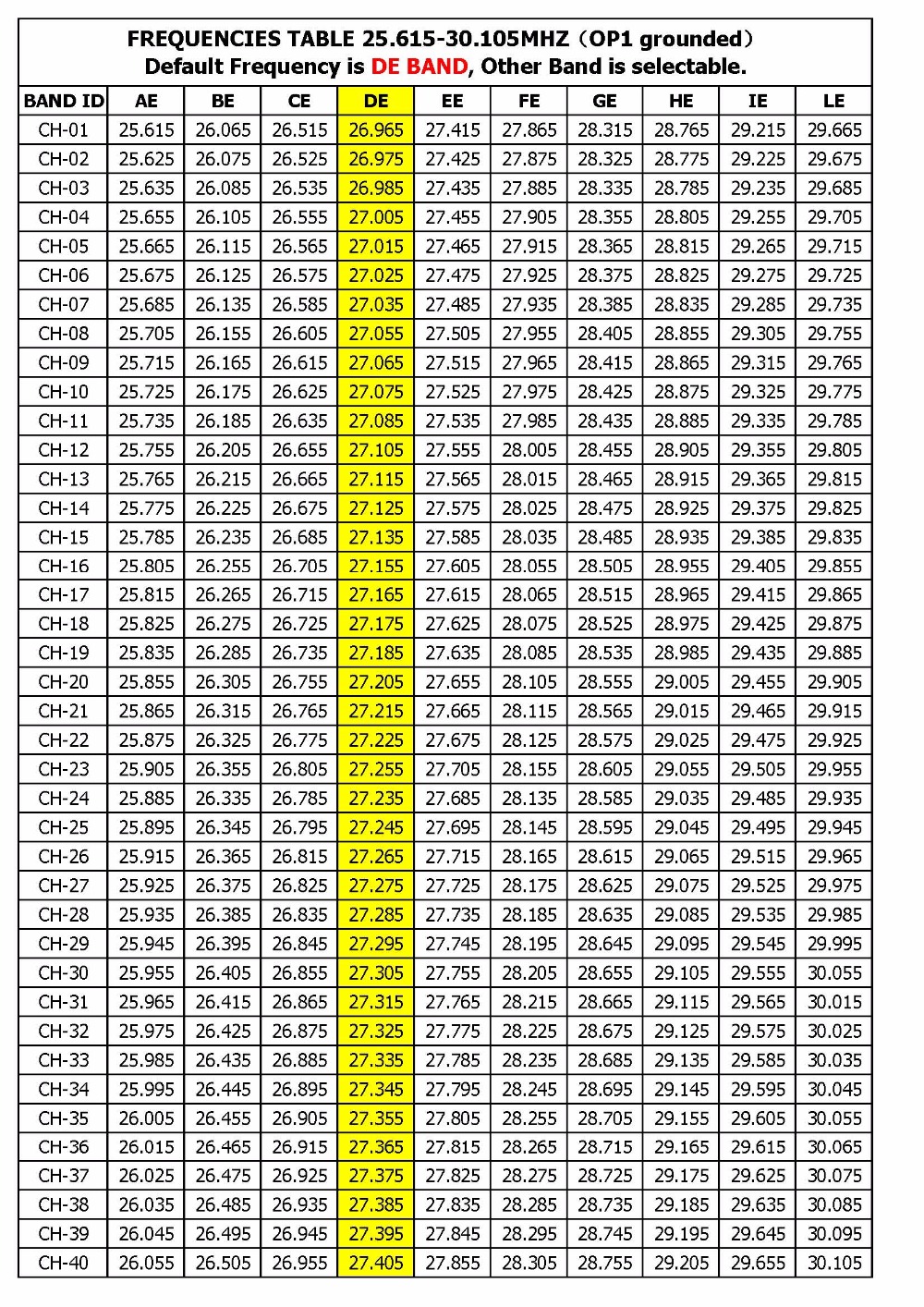

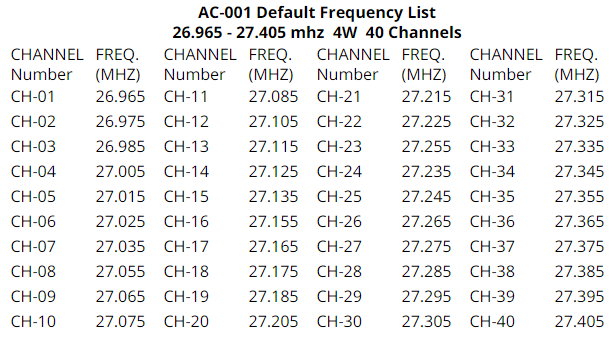

Frequency Range: 26.965 - 27.405 mhz Default ( 25.615 - 30.105MHz Selectable )
Frequency Tolerance: 0.005%
Input Voltage: 13.2V
Dimensions: 104*109*25mm
Weight: 421g
Frequency control: PLL Synthesizer
Operating Temperature range: -20℃ to +50 ℃
Antenna Connector: UHF,SO-239
Transmitter
Output Power 4 Watts / 8Watts FM/AM   (HIGH LOW POWER Selectable)
Transmission interference: inferior to 4nW(-54dBm)
Frequency Response: 300-3000Hz
Modulated signal distortion: inferior to 5%
Output Impedance: 50 ohms



Receiver
Sensitivity Less than 1uV for 10dB(S+N)/N
Image Rejection: 70dB
Adjacent Channel Rejection: 60dB
IF Frequencies: 1st 10.695Mhz 2nd 455KHz
Automatic Gain Control(AGC): Less than 10dB change in audio,output for inputs from 10 to 50000uV
Squelch: less than 1uV
Audio Output power: 1 Watts
Frequency Response: 300-3000Hz

KST is a professional Analogue Two way radio manufacturer more than 10 Years, We are seeking distributor globally!
